I'm getting "Performance too low - Try to lower settings index (SVP index=.85x)"
The video occasionally stutters and audio cuts out. The CPU load was at 25% and the GPU load was at 10%.
How do I fix this?
I'm using MPC HC included with the download on this system:
i7 2600k stock
8GB RAM
GTX 770 4GB
Samsung 7200rpm HDD.
Thanks.
xioSlayer
First do reset settings to defaults: SVP tray menu - Video profiles - Reset to defaults - OK - Yes
If error will appear again then post here Additional information and Last launch log from SVP tray menu - Information
Additional Information:
Last processed file parameters:
Filename: AsCo-Avatar.2009.1080p.BluRay.DTS.x264-UNiT3D.mkv
Frame size and frame rate: 1920x1080 pixels, 23.976 fps
Detected screen parameters
Screen size and refresh rate: 1920x1080 pixels, 60.002 Hz
Video smoothing info
Smooth factor: 5:2
Resulting video frame rate: 59.94 fps
Repeat 1 frame every 16 sec (without ReClock)
Selected profile: 1920x1080@24
Profile settings of video processing
[ExMethod=MSmoothFps_3] Frames interpolation mode: Adaptive (default)
[ExAlgo=13] SVP shader: 13. Standard (default)
[ExMulti=MON] Target frame rate: To screen refresh rate (default)
[ExBlockSize=16x16:1] Motion vectors grid: 14 px. Average 1
[ExRecalc=0:0] Decrease grid step: Disabled (default)
[TypeDist=Exh:-10:SATD] Search radius: Average (default)
[ExPel=2] Motion vectors precision: Half pixel (default)
[Badsad=2000:-24] Wide search: Strongest
[ExSadml=0] Artifacts masking: Disabled (default)
[ExBlend=false] Processing of scene changes: Repeat frame (default)
[ExDwnResize=MON] Decrease frame size: To screen size
[ExConvertFps=false] Blend frames to screen refresh rate:false
Settings by menu
[svp_libflowgpu=1] GPU-acceleration (OpenCL): true
[ExThreads=0] Processing threads: Auto
[StereoMode=0] Stereo mode (3D): Plain 2D
[HandCrop=None] Frame crop: Disabled
[Borderlight=None] Outer lighting: Disabled
[EnableHWBorderlight=0] Use SVPlight: false
[HWBorderlightSettings=0] SVPlight settings...: false
[VDelay=0] Video delay: 0 ms
[ExDemo=0] Demonstration mode: false
[ExTearingTest=0] Tearing test: false
[EFrameDoubling=0] Variable frame rate repair: false
[StopSmoothDelayOnRewind=1] Turn off on seek: Turn off by 1 secLast Launch log:
4:04:51.554; Start: SVPMgr 3.1.5 (931) starts...
4:04:51.555; AppDataPath: C:\ProgramData (ANSI)
4:04:51.555; Start: read settings file settings.ini
4:04:51.555; Start: load language file - English. Duration: 22 ms
4:04:51.577; Start: check launched instance of SVP-manager
4:04:51.577; Start: check Avisynth installed
4:04:51.578; Start: clear Logs folder
4:04:51.579; Start: performance graphs prepare
4:04:51.579; Start: SVPMgr folders prepare
4:04:51.583; Start: read settings file SVPMgr.ini
4:04:51.584; Start: GPUs settings detection. Duration: 18 ms
4:04:51.602; Start: detected graphics (OpenCL) adapter: 11. GeForce GTX 770 (1992)
4:04:51.602; Start: monitors settings detection
4:04:53.426; Start: detected monitors:
1920 x 1080 @ 60.002
1280 x 1024 @ 60.022
4:04:53.427; Start: disable LNG-file write when UAC enabled
4:04:53.427; Start: change SVP-manager priority
4:04:53.427; Start: register hotkeys
4:04:53.429; Start: get versions of modules used
ffdshow.ax/avisynth.dll: 1.3.4515.0/2.5.8.6
svpflow1/2.dll: 1.3.4.0/1.5.1.0
svpflow_cpu/gpu.dll: 1.7.2.0/1.7.9.0
4:04:53.429; Start: refresh autostart state in registry
4:04:53.429; Start: some more work with registry
4:04:53.431; Start: create menu
4:04:53.435; Start: update settings file settings.ini
4:04:53.440; Start: update monitor settings
4:04:53.441; Start: prepare "About the program" window. Duration: 193 ms
4:04:53.634; Start: enable ffdShow waiting mode
4:04:53.634; Start: prepare to work is complete
4:04:53.635; RefreshSVP
4:04:53.637; ===== Waiting for ffdshow video
4:05:17.762; RefreshSVP
4:05:17.763; ===== Waiting for ffdshow video
4:05:43.147; ===== Detected playback with ffdShow. AppName: mpc-hc.exe PID: 6312
4:05:43.147; GetDimensionAndFPS_fromOSD start. Duration: 63 ms
4:05:43.210; GetDimensionAndFPS_fromOSD result: 1920x1080 23.976 1/1
4:05:43.211; T1T: begin
4:05:43.211; T1T: GetAllMediaParams
4:05:43.212; ### CorrectStereoModeByAppAndFilename: AsCo-Avatar.2009.1080p.BluRay.DTS.x264-UNiT3D.mkv
4:05:43.212; T1T: SettingsPrepare
4:05:43.215; T1T: Preparing smooth playback...
4:05:43.215; T1T: WriteAllMediaParamsToIni
4:05:43.215; SVPMgr: main "C:\ProgramData\SVP 3.1\" 1920 1080 23.976 1920 1080 5 2. Duration: 127 ms
4:05:43.342; ===== Playback
23.976 * (5 : 2) = 59.94 fps
4:05:43.342; SetPriorityPlayer: 2
4:06:56.572; RefreshSVP
4:06:56.574; ===== Waiting for ffdshow videoplease, test system by SVPMark and put results to the SVPMark base
I clicked on "share resuts online" is that posting to the "SVPMark base"?
Test summary
-----------------------
Date: 2013-12-11T08:58:47
CPU: Intel Core i7-2600K @3410 MHz [8 threads]
GPU: NVIDIA GeForce GTX 770 [ver.331.40]
Mode: FHD + GPU [17 threads]
Overall scores
-----------------------
Synthetic CPU: MC1941
Synthetic GPU: MG3370
Real-life: FG2407
Details: synthetic
-----------------------
CPU: compose (single-threaded): 539
CPU: compose (multi-threaded): 2291
CPU: search (single-threaded): 394
CPU: search (multi-threaded): 1685
GPU: system -> GPU transfer: 1415
GPU: GPU -> system transfer: 1541
GPU: calculations: 2038
GPU: total score: 7030
Details: real-life /FHD
-----------------------
decode video: 14.19x (340.5 fps)
48 fps - vectors search: 1.27x (61.2 fps)
60 fps - frame composition: 3.22x (193.3 fps)
48 fps - [SVP] fastest: 4.69x (225.0 fps)
48 fps - [SVP] simple 1: 3.93x (188.7 fps)
60 fps - [SVP] good: 2.12x (127.0 fps)
60 fps - [SVP] high: 1.70x (102.2 fps)
60 fps - [SVP] highest: 0.79x (47.2 fps)
72 fps - [SVP] simple 2: 3.72x (268.1 fps)xioSlayer
Performance of your system is normal for it. It must be enough to play 1080p.BluRay.DTS.x264-UNiT3D.mkv. But something is wrong. Maybe filters in your player?
xioSlayer
if you use MadVR try to change it to EVRCP
MAG79
I dont know of any filters in my MPC HC player. I will try to reinstall the player perhaps.
Rimsky
It is set to EVRCP already.
I have uninstalled MPC HC and wiped the settings.
After reinstalling I have the same problem.
Does anyone know what might be wrong?
xioSlayer
Does anyone know what might be wrong?
Maybe filters in your player?
1. please show performacne graphs while message apperas "Performance too low - Try to lower settings index (SVP index=.85x)"
2. please show used filters
Sorry I took so long to respond, my internet has been out for most of today, it just came back on.
I do not seem to have "LAV Splitter". Here is what mine looks like:
On the performance graph, I have put a red circle where I started playing the video. From that point on, there were audio desyncs and video stutters quite frequently.
I seem to have less issues when I set the target frame rate to 2x instead of "To screen refresh rate" which is 60hz. There are still issues though so it is not a solution.
it seems like haali return wrong fps to ffdshow
as variant during playing disable smoothnes, wait for 20-30sec and enable it again
Or unistall haali and THEN run install_splitter.bat in the folder C:\Program Files (x86)\SVP\LAV
xioSlayer
SVP-index must be 1x and performace history line must be stable horizontal.
I think you need to disable wide search in profile settings window.
Hello, I'm not a specialist, but I just Solved a similar problem today.
SVP worked fine, and one day, without anychange of me, I have same problems. SVP too low, audio cut out, and slowly pictures.
I tried many solutions: on MPC-HC and SVP filters ... un-instaled , re-instaled SVP and codec, cleaning registry etc...
Ony a new Windows re-installation solved it...
Everything seems ok for two or three days...and again the same problem.
I did not change anything...but I noticed Windows had installed updates..
Today I tried to uninstalled several Windows updates... and SVP function fine again.
I removed five windows update and one windows framework. I'm sorry I forgot to note the first three. But here is the folowing three. KB2748349 KB2749655 KB2779562 the other was near.
For me it was the solution! If it can help you...
sorry for my poor english
it seems like haali return wrong fps to ffdshow
as variant during playing disable smoothnes, wait for 20-30sec and enable it again
Or unistall haali and THEN run install_splitter.bat in the folder C:\Program Files (x86)\SVP\LAV
I didn't understand what you meant by disable smoothness then wait 20-30 and enable it. I uninstalled haali and then run install_splitter.bat, and it had no positive effect.
MAG79
I disabled wide search and it did not make any difference.
alain48-c
Your english is fine. I'm not sure if I want to uninstall windows updates to fix the problem though.. I will consider it though, thanks.
xioSlayer
set the "processing threads" value to 15 - will it change anything? if no then set it to 19...
Thank you for my english Xioslayer.
When I said "uninstall windows updates", I don't mean all the updates, of courses. But just selected updates. Uninstalled those were not security updates.
This eveningWindows propose to reinstall the six updates, I 'll try to do to discover which one make problems.
xioSlayer
set the "processing threads" value to 15 - will it change anything? if no then set it to 19...
I just tried this and it did not seem to change anything. Neither 15 nor 19.
alain48-c
If you do that I would be interested to know. Thanks. If this does turn out to be the case maybe the SVP devs should be notified of this issue.
sorry for the off topic message, what skin are you using on your AIMP3? I like it but I couldn't find it
sorry for the off topic message, what skin are you using on your AIMP3? I like it but I couldn't find it
http://www.aimp.ru/index.php?do=catalog&rec_id=294
I might just have to uninstall those windows updates if that is indeed the only solution. I really want the smooth video to work...
SVP is done correctly, no performance issue in your case
Thus "...SVP index=0.85x..." its issue of the videopalyer, or file, or monitor refresh rate is not strong equal 60Hz

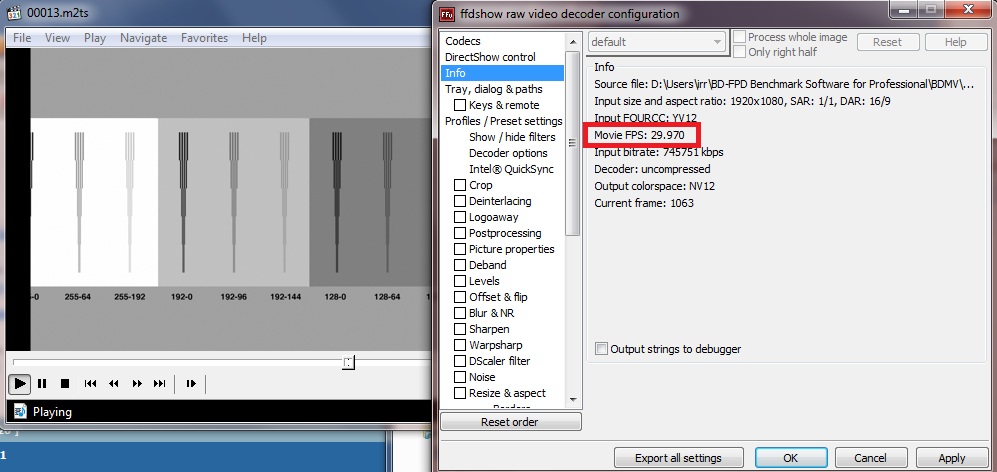

please, check the source FPS of the video in ffdshow during playing
It must be equal source FPS 23.976 and dont change during play (it may vary a litle about 23.976 (23.6-24.2fps), but if it vary strong 19-22-26-28fps then its video with variable framerate
www.jpg 119.83 kb, 622 downloads since 2013-12-13
The FPS stayed the same as far as I could tell. What else could it be?
Another test - turn off gpu acceleration in SVP
xioSlayer
this issue only with one file? or with all/many files?
Rimsky
The issue occurs with all files.
Chainik
The issue persists even without GPU acceleration.
